Sand Casting

What it the Sand Casting?
In sand casting, the metal caster will create a mold by placing an original in the flask which is filled with sand. The original will be a pattern of what you want to cast. By ramming or vibrating the sand, the caster creates a mold of the original. The casting sand used needs to be able to retain the shape of the mold. Finding the right mixture of sand to water is crucial. Too much water can ruin the mold and possibly destroy it while too little water will create a poor casting. Green sand is a type of casting sand that many prefer since its ability to retain the shape of the mold is far better then normal sand. Green sand usually contains bentonite clay, sand, and water.
After the sand is packed, the pattern or original is removed carefully. Molten metal is poured into the mold and allowed to cool. The metal caster will then break the mold and dig out the casting.

Fokli Sand Casting
We offer comprehensive sand casting services, including resin sand casting, clay-bonded sand casting, and precoated sand casting services, including sand molding - melting - casting - clear sand - to clean up gating system – shot blasting. Foundry with a vertical molding line and with another casting workshop by manual, 2 sets of 3 tons furnace and 4 sets of 2 tons furnace. Casting ability over 15000tons/year. Material can do carbon steel, steel alloy, gray iron, ductile iron, brass, bronze, and aluminum alloy. Casting tolerance CT10-CT12, Surface Roughness Ra12.5～50, Part weight: 0.50KG-50000KG. The min wall thickness: 5mm.
Sand casting is used to produce a wide variety of metal components with complex geometries. These parts can vary greatly in size and weight, ranging from a couple ounces to several tons. Some smaller sand cast parts include components as gears, pulleys, crankshafts, connecting rods, and propellers. Larger applications include housings for large equipment and heavy machine bases. Sand casting is also common in producing automobile components, such as engine blocks, engine manifolds, cylinder heads, and transmission cases.

Vertical Molding Line
In 2006 ,our company invest more than 50 million Yuan ,add workshop area 30,000 square meters ,in order to let our company reach the international peer advanced level, so we bring in XZ42-700/A"simliar like DISA Line" vertical parted automatic molding line sand 417B which are international advanced level. Capacity: 12000t/year

Manual-based Molding Workshop
Covering an area of ​​10,000 square meters, the modeling area of ​​3,000 square meters, the existing hot box core shooting machine, Microseismic compaction molding machine, medium frequency induction furnaces.3T,8T electric arc furnace,3T,5T cupola, rolling tracked shot blasting machine, hook type shotcleaning machine casting equipment. Casting weight can vary from ounces to 50,000 pounds or more. Capacity: 3000t/year

Material as Following shows：

Grey iron casting Material:

Other Materials: carbon steel, steel alloy, brass, bronze, aluminium alloy

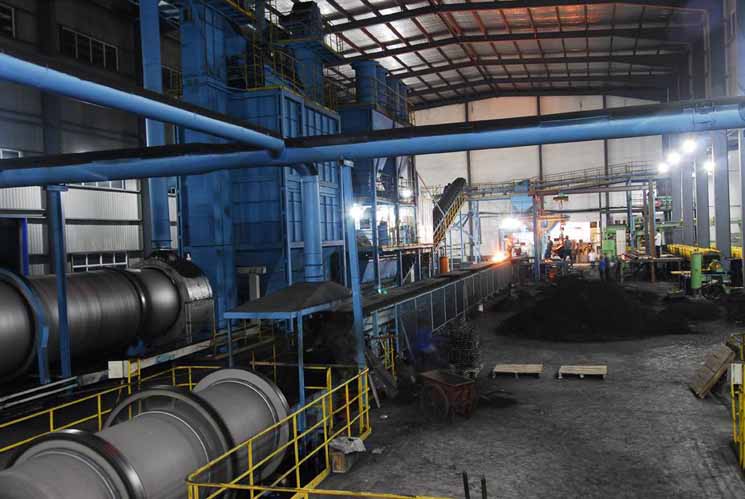

Sand Casting Line on Site:
