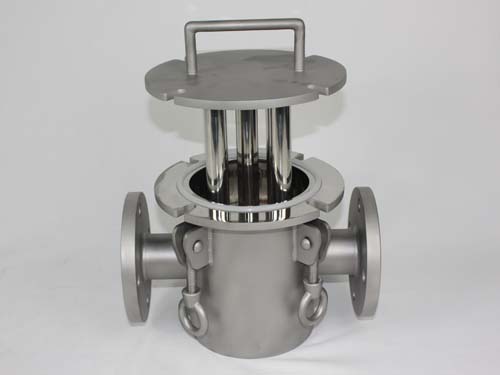

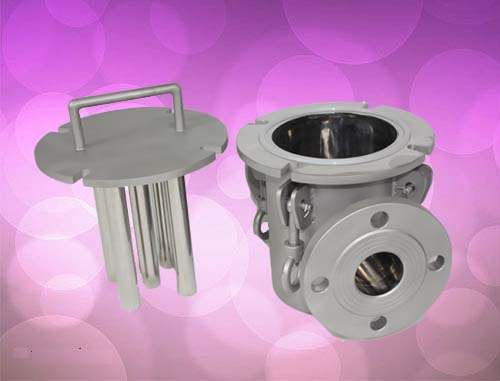

Magnetic Liquid Traps are widely used for removal of Fine Iron Impurities from Lubricants, Liquid Chemicals. Slurries, Coolants, Liquid Pharma Food Products. This can be installed in a process line along the passage of fluid fluid. High intensity magnetic candles are installed inside the S.S. 304 / 316 Housing capable of arresting fine iron particles from flowing material. Flowing material is made to travel around full magnetic field region of candles for effective arrests of iron particles magnetic filters can be designed for required flow rate considering type of the material to allow flow of product under some pressure. All filter shells are hydraulically tested to check the leakage at joints and sealing points.

Liquid Trap Magnets are those engineering device that removes ferrous tramp from liquid processing and conveying lines.

Liquid magnetic traps separators provide magnetic protection for liquid lines and processing equipments. They preserve product purity by removing small contaminants.

They protect against tramp iron and other ferrous fine contaminations.  It consists of powerful magnets to capture finest possible contaminants. Magnetic configuration ensures maximum exposure of contamination to the high intensity tubes without any obstruction to liquid flow.

Types:
Based on the configuration and the types of contaminants they capture, the liquid tramps are of following types:

Cartridge-Style Liquid Traps:
For non fibrous fluids cartridge-style liquid traps are ideal. These types of separators are utilized where the size of the contaminants is few diameters and pose no risk of clogging. When the liquid is forced towards the tightly spaced grid, the contaminants come in the effect of magnetic field, which is extracted from the liquid flow by powerful Rare Earth Magnets. The contaminants are held on the cartridge surfaces, which is later removed.

Magnetic Liquid Traps- Single Plate:
Single plate magnet style liquid traps are effective and efficient in removing ferrous particles from viscous and fibrous liquids and liquids containing large suspended solids. The contaminants are thrusted to the magnetic plates where they are held. The magnetic field is strong enough to trap and protect the tramp materials from the wiping action of the liquid flow. The cleaning is done by removing the plate magnets from the housing and wiping the ferrous tramp to the edge of the plate, where it can easily be brushed away.

Magnetic Liquid Traps- Dual Plate:
Dual plate magnet has diverter that creates a smooth flow pattern that protects fragile products from damage. The diverter also divides the product flow over two plate magnets. Thus even the flow rate is higher the dual plate traps can effectively handle it easily. The flow rate can be slowed thereby giving more magnetic protection. Also more contaminants are exposed to the magnetic field in the dual plate magnetic liquid traps.

Specifications:
(1) The liquid trap magnets are equipped with powerful Rare Earth Magnets of high-intensity   there by capturing even the minutest ferrous fines.
(2) The trap magnets come in different forms like single plate, dual plate cartridge's type etc.
(3) They are easy to mount and operate.
(3) The liquid trap magnets are housed in stainless steel structure.
(4) The entire flow of the liquid is covered by the cartridge in cartridge liquid magnets which creates strong magnetic force and capture the tramp iron and ferrous particles.

Applications:
(1) Food industries
(2) Pharmaceutical
(3) Chemical product flows
(4) Rubber industries
(5) Plastic industries
